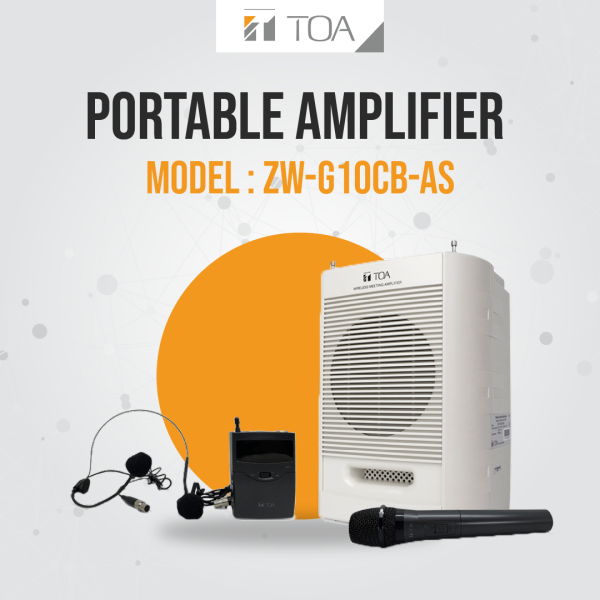

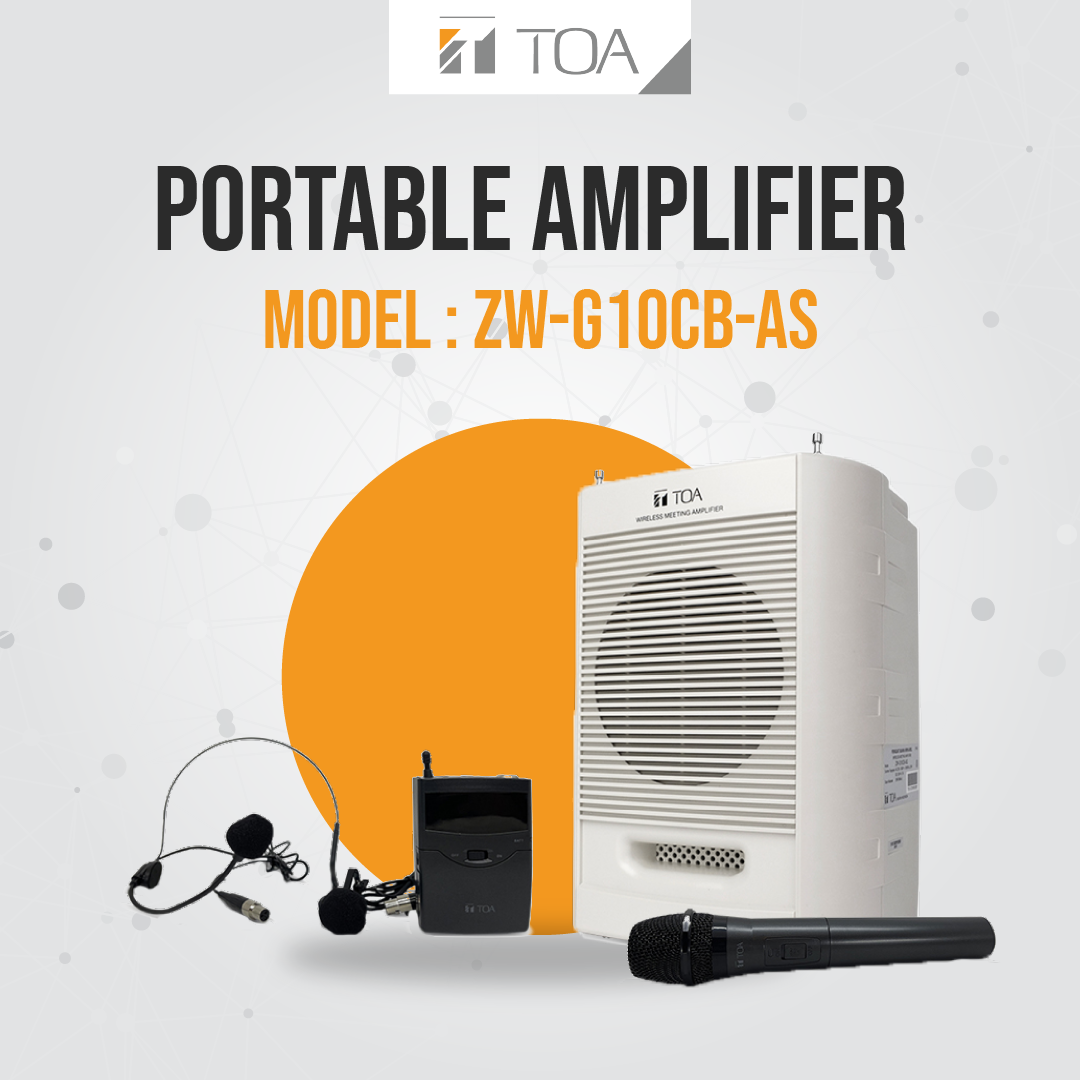

PORTABLE AMPLIFIER TOA MODEL ZW-G10CB-AS | GARANSI RESMI

TOA ZW-G10CB-AS Portable Amplifier offers reliable performance, clear, powerful sound and is simple to operate. This portable sound system is equipped with an audio music player that allows music to be played from CD, USB or SD/MMC card and is simple to operate.

Specifications :

Power Source AC In: 220-240V, 50/60 Hz;  DC In: 12V 1A, Max. 18V ; DC : 12V/2.3Ah (Rechargeable Battery)

Power Consumption AC : 20W, 0.1A (at rated output) ; DC : 30W, 1.6A (at output Power Max)

Output Power : 20W Max.

Frequency Response  : 60 Hz – 20 kHz (±3 dB)

Distortion : Less than 5%

Inputs : Mic 1 & 2 : -40dB* unbalanced 5kΩ, 2 Pole-Phone Jack ; Aux In : -20dB* unbalanced 10kΩ, RCA Pin Jack

Outputs : Audio Out: -25dB* Unbalanced 40kΩ, RCA Pin Jack; Speaker Out: 8-16Ω, RCA Pin Jack

Battery Live :  Approx 5 Hours, Continuous Music

Charging Time :  12 hours, 12V/2.3 Ah, Lead Acid Battery, 1 pcs

S/N Ratio:  60 dB or more

Antenna :  Rod Antenna

Speaker :  6* Cone (150mm), 4Ω, Full Range

Dimensions : 234 (W) × 341 (H) × 180 (D) mm

Weight : 3.8 kg

Accessory : Power card (1.5m)…1 Remote control and inside the battery type CR 2025 3V…1 Handheld Wireless Mic …1  Body Pack Wireless Mic …1 Headset Mic …1 Tieclip Mic…1
